Mefiag Seal centrifugal plastic pumps which is design for chemicals application such as alkalines, acid, and other aggressive solution. In view of the fact that these pumps are designed and manufacture entirely by Mefiag. It is the perfectly suitable for the electropating industry where quality and reliability are essential.The pumps are also available separately for fluid transfer or circulation.
Material selection is very important for designing chemical pumps and Mefiag has provide Polypropylene, PVDF, CPVC for pump housing, complete with Titanium, SS 316, PVDF pump shaft, and Silicon Carbide with Viton/EPDM mechanical seals.
They are favorable price-quality ratio, have a wide range of applications. Consequently these pumps are supplied not only together with a filter, but also separately, for transfer or circulation purposes. To make these pumps even more user friendly and more universally useable, standard hose adapters and magnetic switches can be fitted and, if required, the pumps can be mounted on a base plate.
Key Features
- Available with double seals which are suitable for crystallize solution
- Available with flanges, unions or hose adapters
- Maximum temperature 80°C (PP), 90°C (CPVC) 99°C (PVDF)

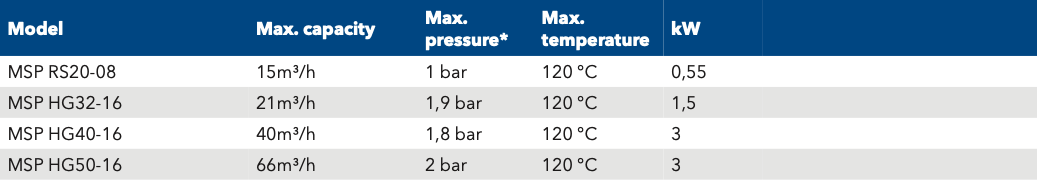

- 4 different standard pump sizes are available
- Standard hose adapters and magnetic switches available
- Pumps can be mounted on a base plate, if required
- Suitable for all kinds of acid and bases
- Silicon carbide seals
- Long life with minimum maintenance
- Open impeller is not sensitive for particles
